Raymarine B744V Bronze Through-Hull Transducer with Fairing
Description

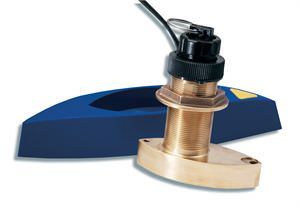

B744V Bronze Through-Hull Transducer with Fairing
Key Features
- Compatible hull material: wood, and fiberglass
- Frequency: 200/50 kHz
- Cable: 25ft cable
-
Hole diameter for installation: 2"
-
Self-sealing removable paddle wheel insert
Compatible models
- e7D - when used with E66066 adaptor cable
- DSM30
- DSM300
- For A Series see part A66090
Through-Hull Transducers
Through-hull transducers are mounted through a hole drilled in the bottom of the boat and protrude directly into the water. This type of transducer generally provides the best performance.
Through-hulls are recommended for displacement hulls and boats with straight-shaft inboard engines. You'll also need a fairing block that allows the transducer to be mounted properly. Through-hull transducers must be installed with a fairing to ensure proper alignment and a secure fit.
Through-hull transducers must be positioned in front of the propeller, rudder, keel or anything else that may create turbulence. They must be mounted in a position that is always underwater and angled straight down.
