Barton Marine "Wincher" Large
Description

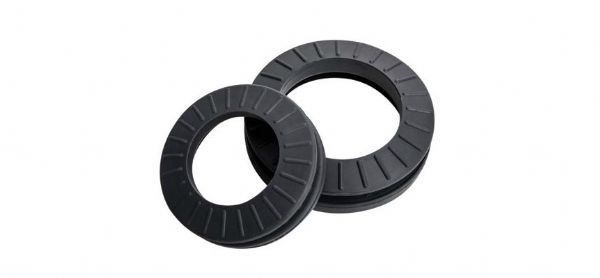

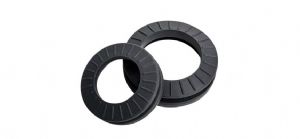

THE BARTON ‘WINCHER'
Barton ‘Winchers'
Wincher Large (pair) 216413
Top of Flange=120mm
Max Drum Diamter= 80-90 mm
Max Rope Diameter=12-14mm
Weight= 278gm
A specially designed rubber moulding which fits over the top of standard winches,
converting them to self-tailing.
This simple operation works when the line is sheeted under load, which means the coils climb
up the winch drum and then become gripped by the underside of the Wincher's rubber body.
Cleating is achieved by locking the sheet into the Wincher's ribbed central groove.
The Barton Winchers are easy to fit and available in four sizes to suit a wide range of
popular winches.
Full fitting instructions are included
