Raymarine Element 9HV Sonar/GPS – 9.0” Chart Plotter with CHIRP Sonar, Hypervision, Wi-Fi, GPS, HV-100 all-in-one transom mount transducer, No Chart
Description

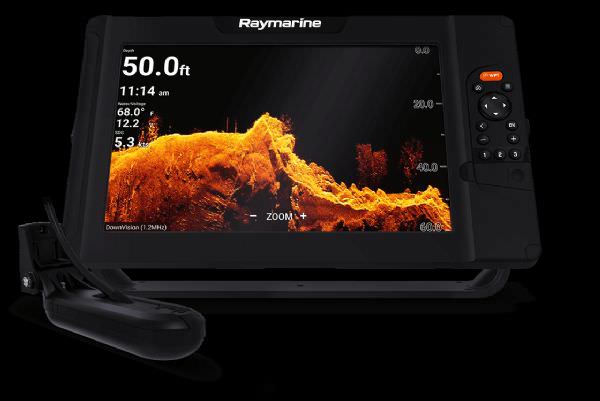

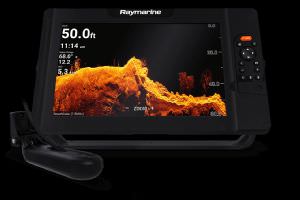

Element 9 HV - 9.0" MFD with HV-100 all-in-one transom mount transducer
Fish Smarter - Above and Below the Waterline
Knowledge is power-and the ElementTM CHIRP sonar/GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element's HyperVisionTM 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
Specifications
Extras/Additional Info:
MODEL Element 9 HV
GENERAL SPECIFICATIONS
Display Size 9.0" Optically Bonded LCD
Display Resolution 800 x 480 WVGA
Display Type Non-Touch
Brightness 1,500 nits
Viewing Angle Top 50° / Bottom 60° / Left 70° / Right 70°
PHYSICAL
Overall Dimensions
W x H x D 240 x 135 62mm
(11.3 x 6.3 x 2.4 inches) 357 x 215 x 62mm
Product Weight (lbs) 5.0
Water Ingress Protection IPx6 and IPx7
Operating Temperature Range -25°C to + 55°C (-13°F to 131°F)
Storage temperature range -30°C to +70°C (-22°F to 158°F)
POWER
Voltage 12V DC (8V to 16V DC)
Power Consumption
(max 12V DC) 20 Watts
SENSORS
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS
Sonar Type (Built-in) Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
Sonar Connection 15 pin HyperVision™ type connector
Sonar Depth CHIRP Sonar = 274m (900 feet)
DownVision™ Standard = 183m (600 feet)
