Orkney Pilothouse 20 MK3 with Mercury 80hp & Braked Road Trailer

The Pilothouse 20 has a large beam along the waterline spray which gives it even better stability without sacrificing to perform well with relatively small engines.

• Big cockpit with underfloor stowage lockers
• Lockable wheelhouse with excellent visibility through alloy framed window
• Self draining cockpit with safe high coamings
• Wide safe side decks with guardwire option
• Spacious cabin with galley and toilet option
• Easy to Tow & Launch
• Outboard  Options

Construction. Hull deck and ancillary mouldings are constructed in heavy duty lay-up GRP.Isopthalic resin is used in the hull which is stiffened below the waterline by bonded in bulkheads and longitudinal stringers. The cabin and cockpit are formed by GRP modules which are bonded into the hull to increase rigidity. The one piece deck moulding is of a sandwich construction using balsa core stiffening in the walking area. It is fixed to the hull with marine grade fastenings.

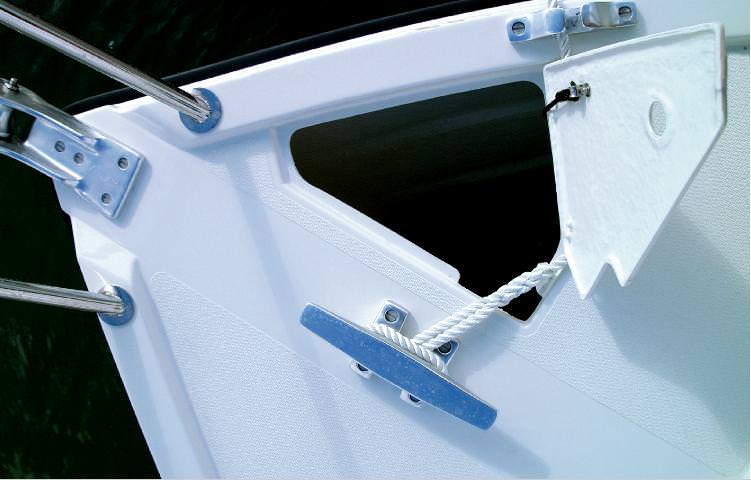

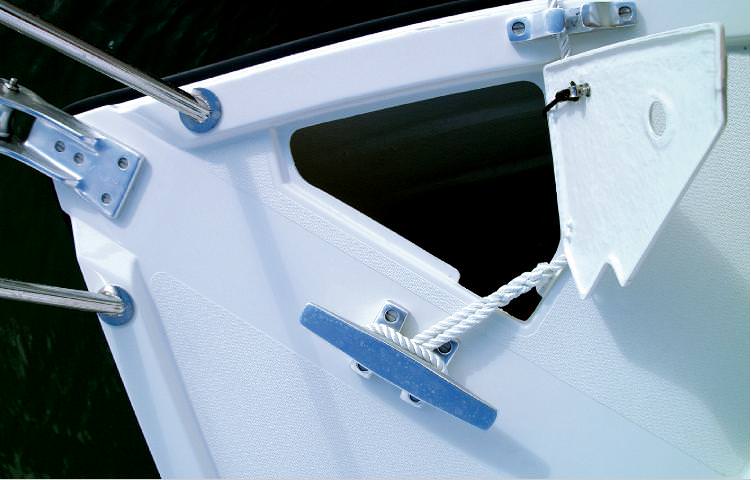

Hull and Deck Fittings. Stainless Steel bow roller,mooring,  cleats. Hand rails from wheel house to cabin top. Alloy framed wheelhouse windows, Opening hzatch foredeck hatch,lockable GRP cabin door in alloy frame,fitted bilge pump.Heavy duty gunwhale fendering.

Cockpit. Constructed in GRP with moulded in non slip surface walking areas, full self draining through transom scuppers. Under floor battery storage. Seperate under floor fuel tank locker and stowage compartments . Moulded boxes giving access to side decks.Single outboard well. Fitted Battery master switch.

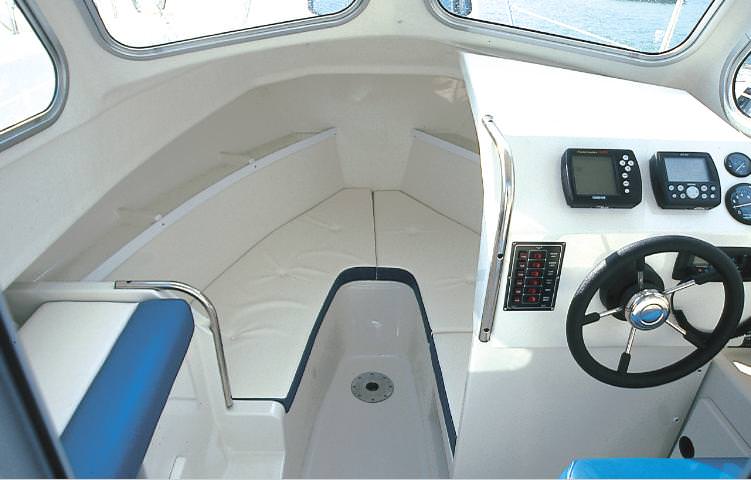

Accomodation Enclosed cabin, helmsmens seat with stowage under, fire extinguisher stowage and steering console to starboard, co pilot sitting area with cushion and stowage under.  Berths and sitting area forward. Area forward of steering console to take optional toilet. Equipment.  windscreen wiper for helmsmen,  electric switch panel,manual fire extinguisher.

Standard PH20 to Dayangler option please add £2202.Please conact us for full details.

Standard PH20 to Valiant option please add £9786 Please conact us for full details

. The Pilothouse also comes fitted with Foredeck Hatch Opening Side Windows and Tonneau Boat Cover.

TRAILER: D6.2000 Multi Roller Road Trailer. Consisting of 4 wheelled trailer with 3 x 16 roller bedswinch, winch post, lighting board. GVW 2000kg.165 x 13in Wheels. ALTERNATIVE TRAILER- Orkneys own PH20/4. With a capacity of 1500kg, 4 wheelled braked Multi Roller, consisting of lighting board, winch. For only an additional £649!

Please allow for fully laden boat and accessories when deciding which trailer is suitable for your requirements. Please check with vehicle manufactures specifiaction when calculating trailer requirements.

ENGINE: MARINER 75 hp 4 stroke engine

SUGGESTED ACCESSORIES Stainless Steel Side Rail  Rear Quarter Seats & Stainless Steel .Guard Rails Electronic Packages Available

All Packages include standard specification, setting up of boats to trailer, fitting of cuddies (where applicable), predelivery inspection of engines and test running, full handover instruction, owner's manual and service records books.
