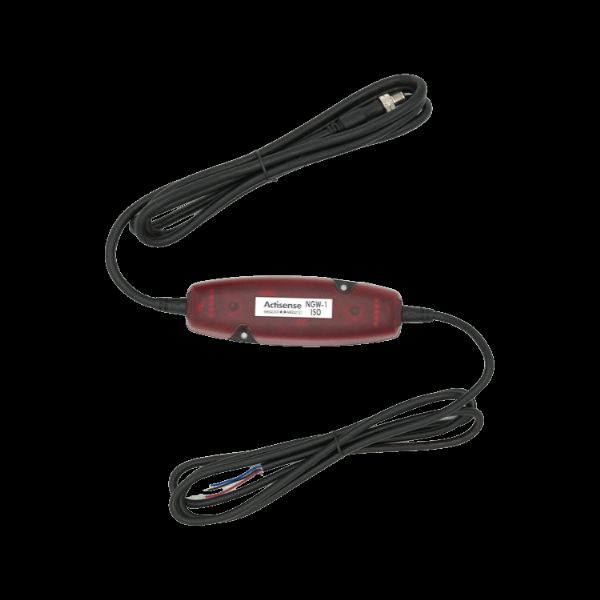

Actisense NGW-1 Bi-directional NMEA 2000® Conversion Gateway-Raymarine STNG Version

NGW-1 Bi-directional NMEA 2000® Conversion Gateway

Hook up to NMEA 2000 whilst keeping currently installed NMEA 0183 devices.

The NMEA 2000 Gateway provides an uncomplicated way to link between a boat's data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa.

Multiple NGW-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data from one place to another.ully NMEA 2000 Certified

Bridge an NMEA 2000 network with your old 0183 electronics using the NGW-1.

The NGW-1 has the largest range of conversions available on the market. To see a full up to date list of the conversions the various configurations can handle, please click here.

The Actisense NMEA Reader software utility allows the NGW-1 user to view and understand (in detail) the translated NMEA 0183 sentences output by an NGW-1 directly.

FEATURES

Fully isolated NMEA 0183 incorporating ISO-Drive^TM technology
Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
Supports Fast Heading at 10Hz
Up to 230,400 baud data transfer rate
Integrated 1.5m drop cable
Diagnostic receive LEDs
