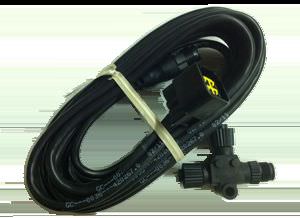

NMEA 2K Yamaha Engine Interface Cable
Description
Yamaha Engine Interface Cable
Connects to Yamaha engines without Yamaha CommandLink Plus system.
- 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
- 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
Outputs:
| Yamaha | 4-stroke 50-250| 2-stroke HDPI 150-350| |
| RPM | Yes| Yes |
| Alternator Voltage | Yes| Yes |
| Engine Hours | Yes| Yes |
| Engine Temperature | Yes| Yes |
| Fuel Pressure | Yes| Yes |
| Fuel Rate | Yes| Yes |
| Oil Pressure | Yes| Yes |
| Trim * | Yes| Yes |
| Water Pressure | Yes| Yes |
*Digital trim must be connected by a Yamaha dealer.
*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
