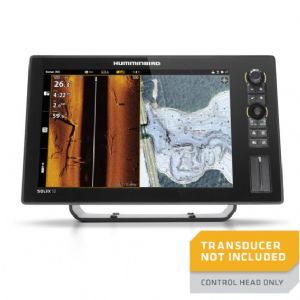

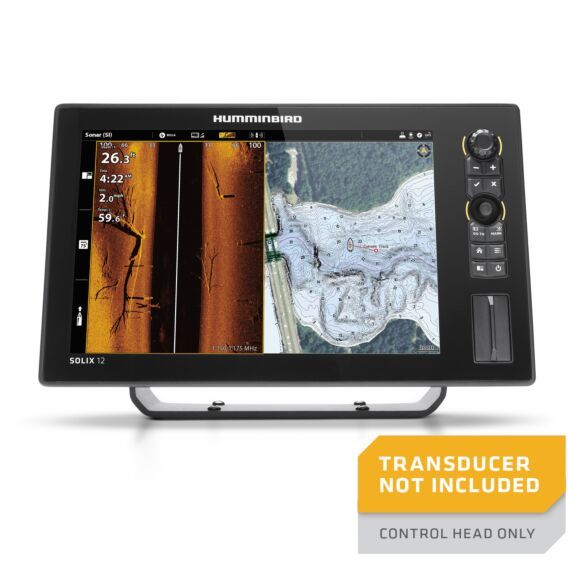

Humminbird SOLIX 12 CHIRP MSI+ G3 inc Transducer XM 14 HW MSI T

Description

The SOLIX 12 CHIRP MSI+ G3 combines cutting-edge technologies like MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and AutoChart Live on an ultra-clear Cross Touch® display. Take full advantage of the generous 12.1" touchscreen display with customizable views and settings that allow you to see multiple technologies at once and find what you want quickly via the convenient side bar menu. Leverage the networking power of built-in Wi-Fi and NMEA 2000®, as well as Bluetooth® and Ethernet connections for compatibility with the One-Boat NetworkTM family of products from Humminbird, Minn Kota and Cannon.

  • Cross Touch® Interface: Control your fish finder using the touchscreen or the keypad-
  • Customized Experience: Utilize an intuitive user interface and sidebar menu which provide customizable settings
  • NEW Dual Core Processor: Perform any task with speed and ease,
  • Airmar® Transducer ID: For those looking to install accessory 2D Airmar transducers, SOLIX G3 provides transducer ID to make for fast and simple setup.
  • Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
  • Internal GPS and Humminbird Basemap:
  • Premium Chart Compatible: your choice of compatible Navionics® charts.
  • AutoChart Live: Create real-time maps of your fishing spots, AutoChart Live mapping capacity.
  • One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota motors and Cannon Optimum downriggers to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
  • Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
  • Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.
  • NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information with NMEA 2000 networking.
  • Compatible with CZone® Contact 6, Contact 6 Plus and digital switching devices
  • SOLIX G3 & APEX MSI+ Side Imaging has increased range capability to 75m (250 feet)
  • SOLIX G3 & APEX MDI+ Down Imaging had increased range capability to 75m (250 feet)
  • Includes control head, mounting hardware, power cable, and gimbal mounting bracket. Product comes with 2-Year Limited Warranty.

Specifications

Extras/Additional Info:

Series SOLIX
Display Size - Diagonal 12.1"
Display Pixel Matrix 1280H x 800V
Sonar-Standard Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
Sonar-Coverage 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
Sonar-Optional 50 kHz, 50/Low Airmar CHIRP and SM3000
CHIRP - Frequencies Supported Full Mode (28-75 kHz), Narrow Mode (75-155 kHz), Optional Deepwater (28-250 kHz), Wide Mode (130-250 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar 1,200 ft (standard transducer), 3,500 ft (optional Airmar CHIRP)
CHIRP - Imaging-Frequencies Supported 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
Depth-Down Imaging 125 ft (800 kHz), 250 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side) 250 ft (800 kHz), 500 ft (MEGA), 800 ft (455 kHz)
Interface Touch Screen
Features Bluetooth, Built In GPS, Built In Mapping, CHIRP Digital Sonar, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Side Imaging, Touch Screen, Wi-Fi
Memory Card Slot Dual SD
Compatible With AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar, MEGA 360, One-Boat Network, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota US2 Sonar
Power Draw 2.88 Amps
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 8000 Watts
Power Output RMS 1000 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 13.82" W x 9.55" H x 4.79" D
Mount-Optional Size 13.82" W x 8.21" H x 1.2" D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Trackplotting Included
LakeMaster Compatibility Yes
Coast Master Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum + Compatibility Yes
Platinum Compatibility Yes
Heading Sensor GPS Compatibility Yes
Upgradable Software Yes
View Preset Keys No
X-Press Menu System No
Custom Digital Readout Yes
Custom View Selections Yes
Display Colors Grayscale 16-Bit
Display Size 11" - 15"
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes

Extras/Additional Info:

Including Transducer XM 14 HW MSI T
