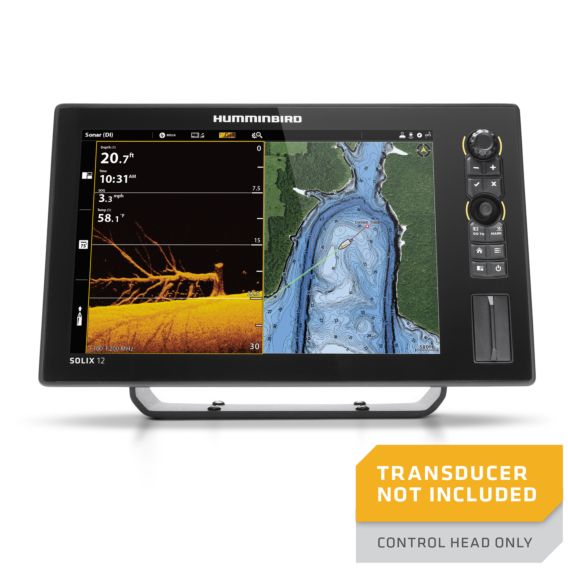

Humminbird SOLIX 12 CHIRP DS/MDI+ GPS G2 CHO

Description

The SOLIX 12 CHIRP MEGA DI+ G2 CHO combines tournament-ready technologies like MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, AutoChart Live and intuitive Cross Touch control. This unit has the power of Wi-Fi, Bluetooth, Ethernet and NMEA 2000® connections built-in and allows for up to four customizable viewing panes so you can view multiple technologies at once, taking full advantage of the generous 12.1" display. This is a Control Head Only unit-Transducer is not included. Model is compatible with Minn Kota Built-in MEGA DI trolling motors

  • An accessory transducer of choice can be purchased to suit your install and application needs. This model will also connect directly to Built-in MEGA DI transducers, found on select Minn Kota trolling motors (no adapter required).
  • NEW MEGA Down Imaging+: Get unprecedented underwater clarity with coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail than MEGA Down Imaging Sonar.
  • Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
  • SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
  • Cross Touch Interface: Control your fish finder using the touchscreen or the keypad-it's up to you. Cross Touch lets you quickly and intuitively access technologies on your terms, no matter your situation and conditions. Any menu navigation you can do on the touchscreen can also be done on the keypad and vice versa.
  • Humminbird Basemap
  • AutoChart Live: Create real-time maps of your fishing spots,as you drive your boat, with eight hours of built-in recording time.
  • NMEA 2000® Networking: Connect SOLIX to a NMEA 2000 backbone to gather a complete view of your vessel, including available information like engine gauges, fuel information, and NMEA 2000 connected accessories. Share this information to any other Humminbird unit onboard that is connected via an Ethernet network.
  • Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.
  • Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).
  • Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
  • Includes power cable, gimbal mounting bracket and unit cover (transducer sold separately).



Specifications

Extras/Additional Info:

Series
SOLIX
Display Size - Diagonal 12.1"
Display Pixel Matrix 1280H x 800V
Sonar-Standard Dual Spectrum CHIRP, MEGA Down Imaging+
Sonar-Coverage 20°, 42° & 60° @ -10dB
Sonar-Optional 50 kHz, 50/Low Airmar CHIRP and SM3000
CHIRP - Frequencies Supported Full Mode (28-75 kHz), Narrow Mode (75-155 kHz), Optional Deepwater (28-250 kHz), Wide Mode (130-250 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar 1,200 ft (standard transducer), 5,000 ft (optional Airmar CHIRP SM3000)
CHIRP - Imaging-Frequencies Supported 455 kHz DI+ (435-535 kHz), 800 kHz DI+ (800-860 kHz), MEGA DI+ (1100-1200 kHz)
Depth-Down Imaging 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
Interface Touch Screen
Features Bluetooth, Built In GPS, Built In Mapping, CHIRP Digital Sonar, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Touch Screen, Wi-Fi
Memory Card Slot Dual SD
Compatible With 360 Imaging, AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon, NMEA 2000, Radar
Power Draw 2.88 Amps
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 8000 Watts
Power Output RMS 1000 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 13.82" W x 9.55" H x 4.79" D
Mount-Optional In-Dash Mounting Kit
Mount-Optional Size 13.82" W x 8.21" H x 1.2" D
Transducer Purchase Seperately
Transducer Mount Location N/A
GPS Chartplotting Included
GPS Receiver Internal
GPS Trackplotting Included
Waypoints, Routes, Tracks/Points 10,000, 50, 50/20,000
360 Imaging Compatibility Yes
Humminbird Basemap Included
LakeMaster Compatibility Yes
Minn Kota i-Pilot Link Compatibility Yes
Minn Kota Talon Shallow Water Anchor Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum + Compatibility Yes
Platinum Compatibility Yes
Radar Compatibility Yes
5-Port Ethernet Switch Compatibility Yes
AIS Compatibility Optional
Heading Sensor GPS Compatibility Yes
NMEA2000 Included
Target Separation 2.5"
Upgradable Software Yes
View Preset Keys No
X-Press Menu System No
Custom Digital Readout Yes
Custom View Selections Yes
Display Colors Grayscale 16-Bit
Display Size 11" - 15"
Display Type Color TFT
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes
