Echomax EM230 Compact Radar Reflector -White with Lalizas White Light

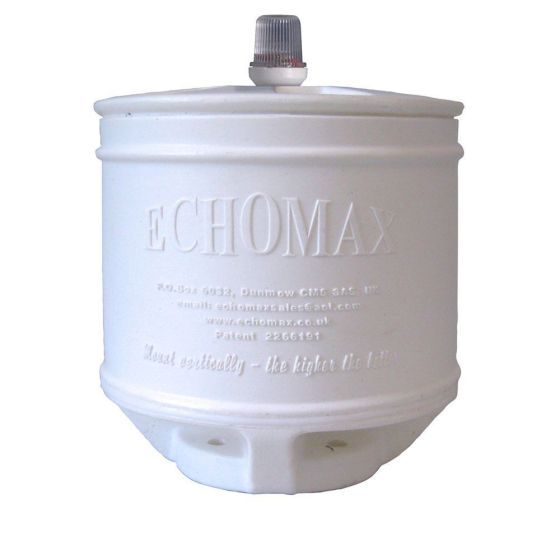

Echomax EM230 Compact Radar Reflector -White with Lalizas White Light (click for enlarged image)
Part #:
EM230CL
Manf. #:
EM230CL

Price:
£237.96


Description

Adapted from the very successful big brother with a high response of 8.3M2. Suitable for 6-9 metre fast fishing boats, solves the problem of where to fit the radar reflector and the light.

Available with optional factory fitted :-
Lalizas DOT all round navigation light (illustrated) or Tri-colour light supplied with 4M of cable.
Hella LED 360 all round white supplied certified by RINA/USCG/IMO/NMMA to 2nm with 1M cable
Orionis B LED with RINA certified to 2nm. Cable length to be specified.
Fitting kit included
Maximum response of 8.3M2 average 1.3M2.
Width 245mm Height 268mm with light 340mm
150mm Base fitting with 4 x 6mm fixings @ 80mm centres
Weight with light 1.6kg.
Just bolt on and wire up! Fit the QD Fitting whilst trailering to avoid damage caused by low obstacles such as trees, garage or barn entrances.
