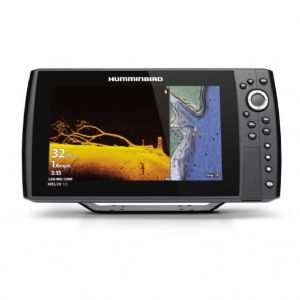

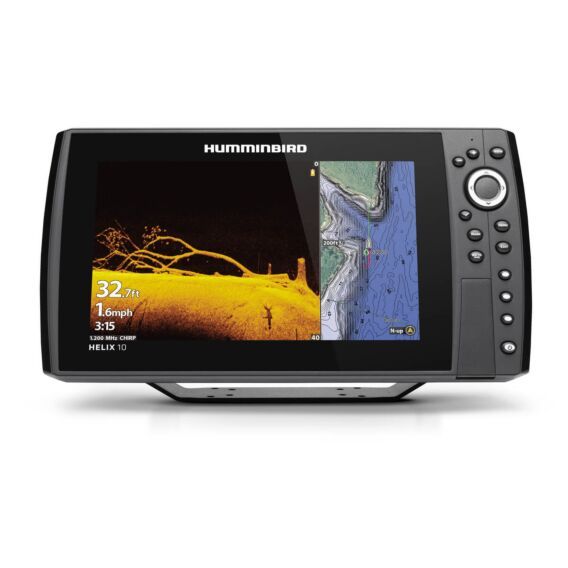

Humminbird HELIX10 CHIRP MEGA DI+ GPS G4N Fishfinder GPS Fishfinder/Plotter 10in
Description
Keypad control: Master HELIX at the touch of a button. Access the preloaded views from the user-friendly menu system, operated by soft key controls that allow you to reliably operate your fish finder in any conditions.
MEGA Down Imaging+: Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMasterTM products, as well as your choice of compatible Navionics® charts.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota motors and Cannon Optimum downriggers to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and a display of smartphone notifications on your Humminbird.
NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
Includes control head, screen cover, transom-mount transducer (if selected), power cable, gimbal mounting bracket and mounting hardware,
2-Year Limited Warranty
Specifications
Extras/Additional Info:
Item Number 411410-1
Series HELIX
Display Size - Diagonal 10.1"
Display Pixel Matrix 1024H x 600V
Sonar-Standard Dual Spectrum CHIRP, MEGA Down Imaging+
Sonar-Coverage 25°, 42°, 45°, 75° @ -10dB
Sonar-Optional 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
CHIRP - Imaging-Frequencies Supported 455 kHz DI+ (435-535 kHz), 800 kHz DI+ (800-860 kHz), MEGA DI+ (1100-1200 kHz)
Depth-Down Imaging 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
Interface Keypad Control
Features Bluetooth, Built-In GPS, Built-In Mapping, Down Imaging, Dual Spectrum CHIRP, MEGA Imaging+, Networking, Side Imaging, Wi-Fi
Memory Card Slot Dual SD
Compatible With AIS, AutoPilot, MEGA 360, MEGA Live, Minn Kota Built-In MEGA DI, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, NMEA 2000, One-Boat Network, Radar
Power Draw 2.7 Amps
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 8000 Watts
Power Output RMS 1000 Watts
Screen SnapShot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 13.44" W x 7.5" H x 4.2" D
Mount-Optional Size 13.44" W x 7.12" H x 1.32" D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Trackplotting Included
LakeMaster Compatibility Yes
Coast Master Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum + Compatibility Yes
Platinum Compatibility Yes
Heading Sensor GPS Compatibility Yes
Upgradable Software Yes
View Preset Keys Yes
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections Yes
Display Colors Grayscale 16-Bit
Display Size 8" - 10"
Speed Included
Temperature Built-In
Temperature Alarm Yes
Temperature Graph Yes
Transducer XM 9 HW MDI T
HDMI Compatible No
MEGA Live Compatibility Yes
