Blue Sea Systems Add-A-Battery Kit - 120A 7650
Description
The ADD-A-BATTERY is as simple to operate as an ON-OFF switch, yet effectively manages the switching and charging of two batteries from a single charge source

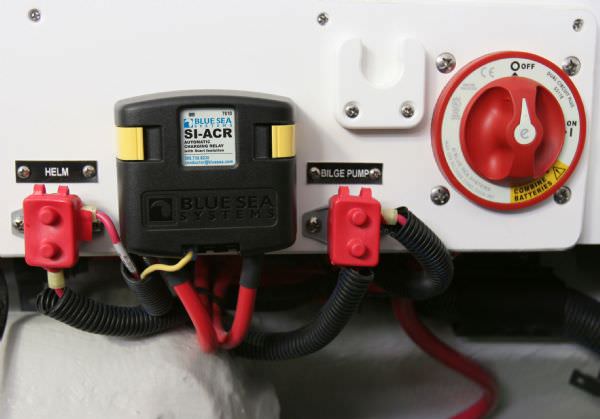

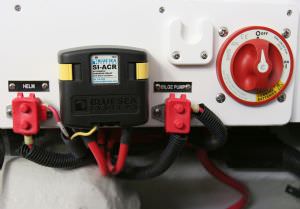

The Add-A-Battery includes a Dual Circuit PlusTM Battery Switch and an Automatic Charging Relay. These components simplify switching and automate charging, so that all you have to do is turn the battery switch ON when you arrive and OFF when you leave.
Dual Circuit PlusTM Battery Switch
- Simplifies switching
- Isolates engine and house circuits
- Combines batteries for emergency starting
- Tin-plated copper studs for maximum conductivity and corrosion resistance
ACR Automatic Charging Relay
- Automatically combines batteries during charging
- Isolates batteries during engine cranking and when not charging
- Shares the charge between two batteries more efficiently than a battery isolator
- Allows efficient dual battery charging without needing regulator adjustment or rewiring
Specifications
Extras/Additional Info:
SI-ACR Specifications
Nominal Voltage 12V DC
24V DC
Start Isolation Yes
Amperage Operating Current 175mA (combined)
15mA (open)
Continuous Rating 120A
Intermittent Rating 210A (5 min)
Cable Size to Meet Ratings 1/0 AWG
Terminal Ring Diameter Clearance 1.12in (28.45 mm)
Terminal Stud Length 0.875in (22.23 mm)
Terminal Stud Size 3/8" - 16 (M10)
Terminal Stud Torque 140 in-lb (15.82 Nm)
Relay Contact Position
Combine 30 sec 13.6V @ 12 V
27.2V @ 24 V
Combine 90 sec 13.0V @ 12 V
26.0V @ 24 V
Open 10 sec 12.35V @ 12 V
24.7V @ 24 V
Open 30 sec 12.75V @ 12 V
25.5V @ 24 V
Open High 16.0V @ 12 V
30.0V @ 24 V
Over Voltage Lockout 16.0V @ 12V
32.0V @ 24V
Under Voltage Lockout 9.5V @ 12 V
19V @ 24 V
Weight 1.25lb (0.57 kg)
Battery switch
Specifications
Switch Type Dual Circuit Plus
Color Red
Switch Positions 3
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32V DC
Continuous Rating 350A
Intermittent Rating 525A (5 min)
Cranking Rating 10 sec 1000A
Cranking Rating 1 min 750A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm˛)
Mounting Holes Accept 1/4" (M6) Screw
Terminal Stud Size 3/8" - 16 (M10)
Terminal Stud Torque 140 in-lb (15.82 Nm)
Weight 1.30lb (0.59 kg
