Blue Sea Systems m-Series Mini Dual Circuit Plus™ Battery Switch - Red
Description
Measures 2.825" x 2.825"
Ignition protected - Safe for installation aboard gasoline powered boats.Tactile textures indicate knob position by feel only
Case design allows surface front panel, or rear panel mounting.Label with international ON/OFF legends.Ideal for marine or RV applications.Accepts up to 4/0 AWG battery cables,All non-corrosive marine grade metals,Molded in durable reinforced polycarbonate.ICON label set included for circuit identification.Removeable knob remains positively retained
3/8"-16 (M16) Tin-plated copper studs for maximum conductivity and corrosion resistance
7/8" Long stud length to accept multiple cable terminals

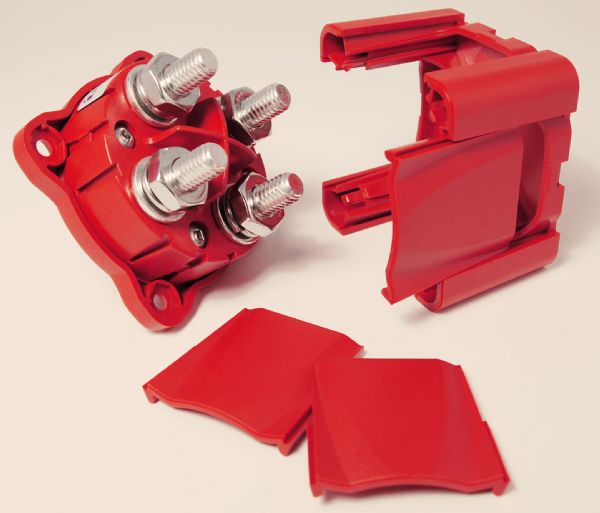

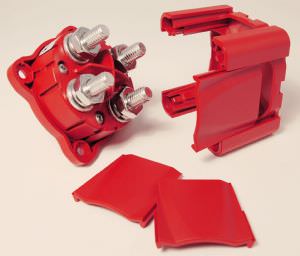

Isolator cover protects rear contacts
Specifications
Extras/Additional Info:
Specifications
Switch Type Dual Circuit Plus
Color Red
Switch Positions 3
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32V DC
Continuous Rating 300A
Intermittent Rating 450A (5 min)
Cranking Rating 10 sec 1000A
Cranking Rating 1 min 650A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm˛)
Mounting Holes Accept #10 Screw
Terminal Stud Size 3/8" - 16 (M10)
Terminal Stud Torque 120 in-lb (13.56 Nm)
Weight 0.80lb (0.36 kg)
