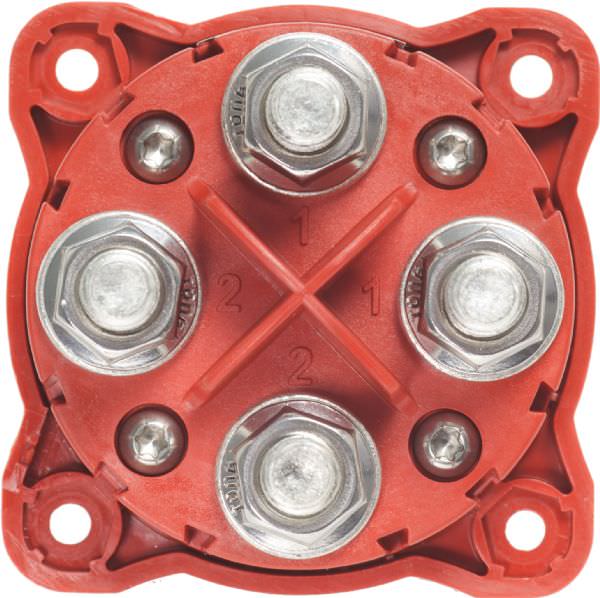

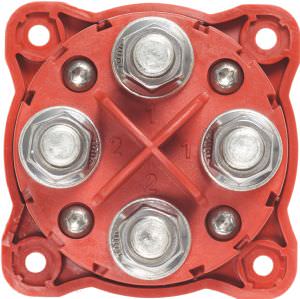

m-Series Mini Dual Circuit Battery Switch - Red
Description
Specifications
Extras/Additional Info:
Specifications
Switch Type Dual Circuit
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect No
Maximum Voltage 32V DC
Continuous Rating 300A
Intermittent Rating 450A (5 min)
Cranking Rating 10 sec 1000A
Cranking Rating 1 min 650A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm˛)
Mounting Holes Accept #10 Screw
Terminal Stud Size 3/8" - 16 (M10)
Terminal Stud Torque 120 in-lb (13.56 Nm)
Weight 0.80lb (0.36 kg)
