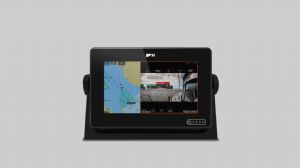

Raymarine Axiom+7 Chartplotters 7in with RealVision RV 3D Lighthouse Chart

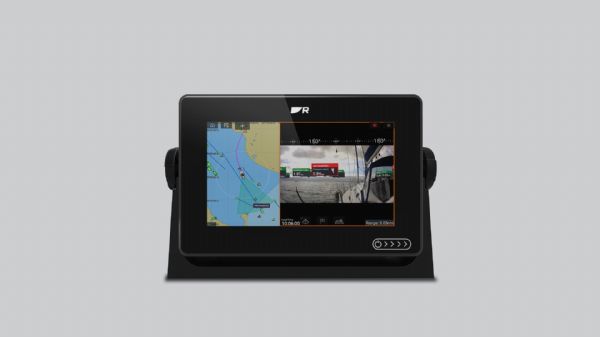

Raymarine Axiom+7 Chartplotters 7in with RealVision RV 3D Lighthouse Chart (click for enlarged image)
Raymarine Electronics(By Flir)
Part #:
02RAE70635-00-202
Manf. #:
E70635-00-202



Description

 Raymarine Axiom+7 Chartplotters 7in with RealVision RV 3D Lighthouse Download Chart

The performance-tuned Axiom®+ is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVisionTM 3D sonar.

New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

PERFORMANCE TUNED

Designed for speed, performance, and future expansion.

FAST & FLUID

Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.

QUAD-CORE POWER

Powerful quad-core processor, plus increased onboard storage for personal data and apps.

LIGHTHOUSE 3 OS

Smart and intuitive LightHouse 3 OS makes navigating easy.

AUGMENTED REALITY

ClearCruiseTM Augmented Reality-capable for smarter navigation decisions.

MAXIMUM VISIBILITY

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning colour.

HYDROTOUGHTM DISPLAYNano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.

 BRIGHTER7, 9, and 12 inch all-weather displays are up to 25 percent brighter (up to 1,800 nits).  SHARPERIPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.

Improved viewing with new LightHouse colour themes, including Day and Night mode.

NEW LIGHTHOUSE CHARTS

Ready-to-explore with new Raymarine LightHouse Charts

Featuring dynamic viewing options, premium points of interest, and detailed satellite imagery.



SIMPLY POWERFUL

Better chart plotting, enhanced GPS, and 3D sonar.

READY TO EXPAND Network with multiple Axiom displays, radars, sonar, and more.
ENHANCED GPS Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.



Specifications

Extras/Additional Info:

MODEL Axiom+ 7
GENERALDisplay Size 7.0 inch High Density IPS
Display Resolution 1024 x 600 (WSVGA)
Display Type Multitouch with HydroTough™ rugged hydrophobic coating
Brightness 1,500 nits
Viewing Angle 85° Top, Bottom, Left, Right
W x H x D 210 x 142 x 77mm
7.92 x 5.24 x 3.0in
(Excluding trunnion and cables)
Weight 3 lbs
Mounting Options Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating IPX6 / IPX7
Operating Temperature Range -25°C to +55°C (-13°F to +131°F)
Storage Temperature Range -30°C to +70°C (-22°F to +158°F)
POWER
Voltage 12V DC (8V to 16V DC)
Power Consumption (Full brightness) 7.34 Watts. RV Sonar version 9.84 Watts
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel
*Future software update required
Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
Sonar Connections 25pin RealVision™ type connector
Sonar Depth High CHIRP Sonar = 900 feet (274m)
