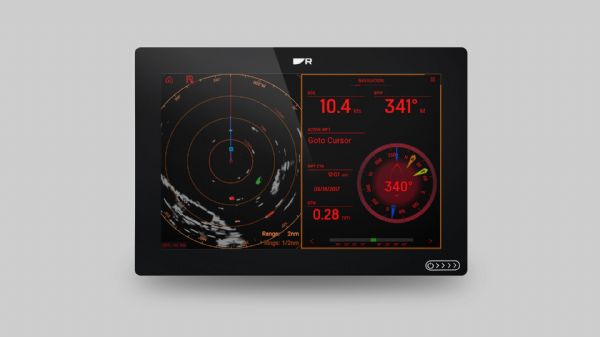

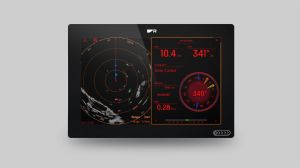

Raymarine Axiom + Chartplotter 12in
Description
Raymarine Axiom + Chartplotter 9in
The performance-tuned Axiom®+ is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVisionTM 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date
SIMPLY POWERFUL
Better chart plotting, enhanced GPS, and 3D sonar.
READY TO EXPAND
Network with multiple Axiom displays, radars, sonar, and more.
ENHANCED GPS
Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.
Specifications
Extras/Additional Info:
Display Size 12.1 inch High Density IPS
Display Resolution 1280 x 800 (WXGA)
Display Type Multitouch with HydroTough™ rugged hydrophobic coating
Brightness 1,800 nits
Viewing Angle 88° Top, Bottom, Left, Right
Dimensions 314 x 217 x 77mm 12.36 x 8.54 x 3.0in (Excluding trunnion and cables)
Weight 6.5 lbs
Mounting Options Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating IPX6 / IPX7
Operating Temperature Range -25°C to +55°C (-13°F to +131°F)
Storage Temperature Range -30°C to +70°C (-22°F to +158°F)
POWER
Voltage 12V DC (8V to 16V DC)
Power Consumption (Full brightness) 15.48 Watts. RV Sonar version 19.96 Watts
SENSORS
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel
*Future software update required
External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AIS Yes - NMEA2000 compatible
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500
Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription
