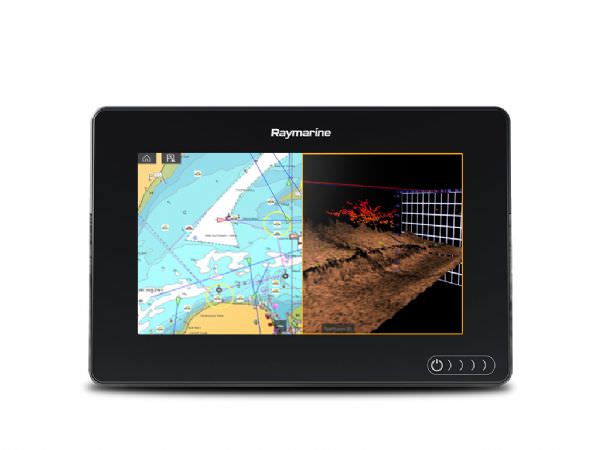

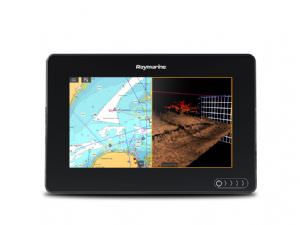

Raymarine Axiom 7 DV Chart plotter with 600W Sonar & Downvision
Description
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
| DISPLAY | |
| Display Size | 7.0" Optically Bonded LCD |
| Display Resolution | 800 x 480 WVGA |
| Display Type | Multitouch |
| Brightness | 1,200 nits |
| Viewing Angle | Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right) |
| PHYSICAL | |
| Dimensions | 210 x 142 x 77mm (7.92" x 5.24" x 3.00") |
| Weight | 1.52kg (3.35lbs) |
| Mounting | Top, Flush, Front, Bracket |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temperature | -25deg C to +55deg C (-13deg F to 131deg F) |
| Storage Temp | -30deg C to +70deg C (- 22deg F to 158deg F) |
| POWER | |
| Voltage | 12V DC (8 V to 16 VDC) |
| Power Consumption (Max @ 12V DC) | Chartplotter - 7.34 Watts | DV - 10.02 Watts | RV - 9.84 Watts Note: Power consumption figures for DV variants were taken using a CPT-100DVS transducer and RV variants using an RV-100 transducer. |
