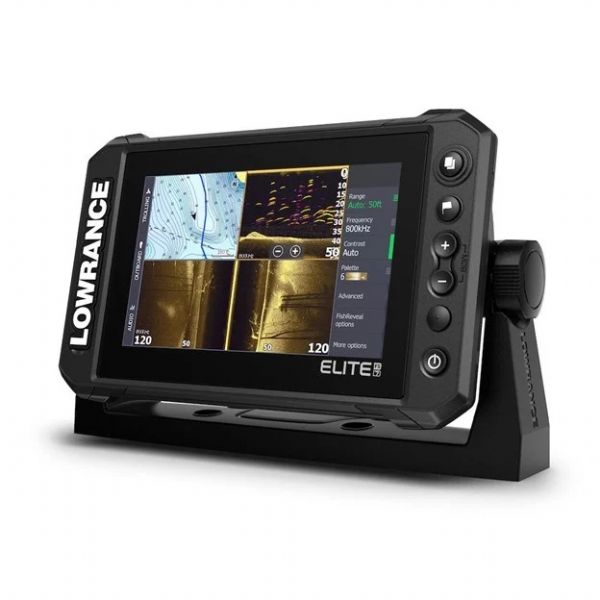

Lowrance Elite FS™ 9 Active Imaging 3 in 1 Transducer
Description
The new Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools - including ActiveTargetTM live sonar, Active ImagingTM and compatibility with a wide range of chart options - to help you make the most of your time on the water.
Key Features
ActiveTargetTM Live Sonar ready
Active Imaging 3-in-1 ready
FishRevealTM
Includes worldwide basemap, plus a wide range of chart options, including C-MAP, Navionics® and more
C-MAP® Easy Routing, Navionics® Autorouting capability
C-MAP Genesis Live onscreen mapping
High-resolution multi-touch touchscreen
Integrated wireless, NMEA 2000® and Ethernet connectivity
Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
Specificationscreen Brightness >1200 nits
SD Card Storage 1 micro SD card up to 32GB
Ethernet Ports 1 x 100Mbit
Update rate 10 Hz
GPS 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Shock Vibration 100,000 cycles of 20 G
Compass Safe 12" (300mm)
Supply Voltage 12v DC (10.8-17VDC)
GPS Receiver Channels 16
NMEA 2000 Connectivity 1x Micro-C
Warranty Period 2 Year
Power Consumption max 2.0A @ 13VDC with backlight on full
Power Consumption typical 2.0A @ 13VDC with backlight on full
Power Consumption min 2.0A @ 13VDC with backlight on full
Weight 2.7 lbs (1.2 kg)
Position Accuracy 20m RMS
Waypoints, Routes, Tracks 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Time to First Fix 30s
Recommended Fuse Rating 3A
Radar compatibility 4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Viewing Angles 50° top60°bottom70° left/right
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Display Resolution 800x480
AIS AIS Chart overlay. Target vessel details.
Charts supported C-MAP (MAX N, MAX N+)C-MAP Genesis Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Cartography included
C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)
Correction DGPSWAASMSASEGNOSGLONASS
Mounting Type Gimbal Bracket or Dash Flush Mount
Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic Sonar Compatibility
Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target Connectivity Wi Fi Internal 802.11b/g/n
Waterproof rating IPX7 with card door closed
Interface Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
Internal Storage None
PC Connectivity None
NMEA 0183 Sentences supported None
Video None
Digital Switching None
Autopilot Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Backlight Color
Pure White LED
