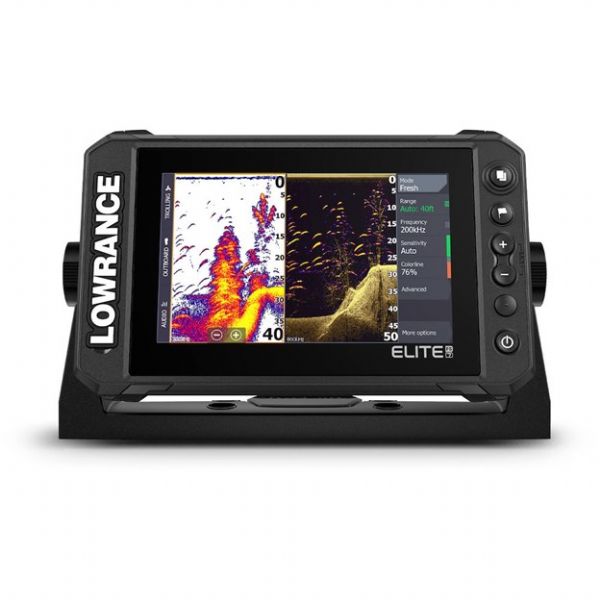

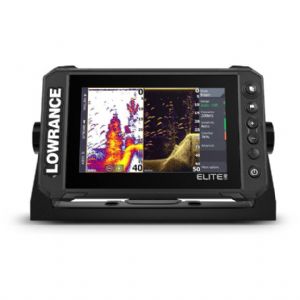

Lowrance Elite FS™ 7 Active Imaging 3 in 1 Transducer
Description
The new Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools - including ActiveTargetTM Live Sonar, Active ImagingTM and compatibility with a wide range of chart options - to help you make the most of your time on the water
Screen Brightness>1200 nits
SD Card Storage 1 micro SD card up to 32GB
Ethernet Ports 1 x 100Mbit
Weight 1.90 lbs (0.90 kg)
Update rate 10 Hz
GPS 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Shock Vibration 100,000 cycles of 20 G
Compass Safe 12" (300mm)
Supply Voltage 12v DC (10.8-17VDC)
GPS Receiver Channels 16
NMEA 2000 Connectivity
1x Micro-C
Warranty Period 2 Year
Power Consumption max 2.0A @ 13VDC with backlight on full
Power Consumption typical 2.0A @ 13VDC with backlight on full
Power Consumption min 2.0A @ 13VDC with backlight on full
Position Accuracy 20m RMS
Waypoints, Routes, Tracks
3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Time to First Fix 30s
Storage Temperature Range
4°F to 140°F (-20°C to 60°C )
Radar compatibility
4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Viewing Angles 50° top60°bottom70° left/right
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Display Resolution 800x480
AIS AIS Chart overlay. Target vessel details.
Charts supported C-MAP (MAX N, MAX N+)C-MAP GenesisNavionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Cartography included C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)
Correction DGPSWAASMSASEGNOSGLONASS
Mounting Type Gimbal Bracket or Dash Flush Mount
Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic
Sonar Compatibility Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
Connectivity Wi Fi Internal 802.11b/g/n
Waterproofrating IPX7 with card door closed
Interface Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
Internal Storage None
PC Connectivity None
NMEA 0183 Sentences supported None
Video None
Digital Switching None
Autopilot Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway acklight Color
Pure White LED
N2K PG Ns
Multimedia SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
