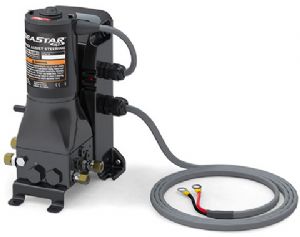

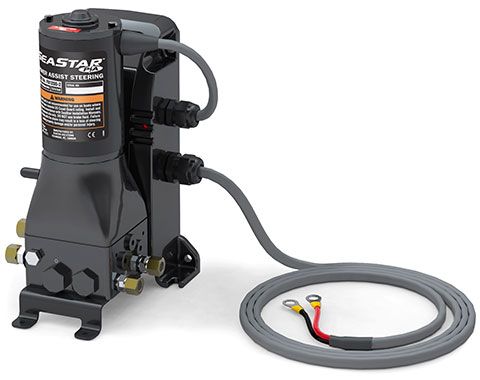

Seastar Power assist System 12v PA1200-2
Description
This new and innovative product is highly recommended on any 200HP and above outboard application to give your boat the same, easy steering you are accustomed to in your car. Power Assist is also recommended for the following:
• Twin and Triple engine applications
• Bass Boats
• Power Catamarans
• Inboard powered cruisers without engine driven power assist.
Part # PA1200-2,
Applications
• 150HP+ single outboards.
• Heavy 4 stroke outboards.
• Twin/Triple outboards.
• Inboards where rudder torque makes wheel effort heavy or uncomfortable.
Features
• Dramatically increases steering comfort.
• Reduced wheel effort.
• Easy installation.
• Simple ‘add-on' to existing SeaStar manual system (up to 2.0cu. in. helms).
• Number of turns lock to lock remains the same.
• Compatible with SeaStar Power Purge system.
• Compatible with autopilots.
• Wiring harness included.
• Ignition protected (SAE J-1171).
• Auto recognize system voltage (12V ).
• ABYC, CE, NMMA, ISO 10592 Approved.
• Capable of floor or wall mount. No need to purchase extra kits.
.................................................................................................................................................................
HOW IT WORKS
SeaStar P/A (Power Assist) steering uses an electronically controlled hydraulic pump to provide "Power" for your SeaStar Hydraulic Steering system.
The SeaStar P/A system is comprised of two circuits: a hand operated manual system, which is the control element, and a hydraulic power pump, which is the working element.
The manual system consists of a helm pump with internal relief and check valves, as well as a built in reservoir. Two steering lines and a compensating line which provide a routing for fluid to transmit through the system, and a steering cylinder which moves the steering device on the boat from side to side.
The power system, is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder (this will result in much easier effort at the wheel-even when under heavy loads). A compensating line connects the P/A unit to the helm pump, allowing the P/A unit to share fluid with the helm reservoir.
The SeaStar P/A is compatible with multiple steering stations, and with the use of an autopilot. In the event of a P/A power loss or failure the hydraulic system will automatically revert to a manual hydraulic system.
