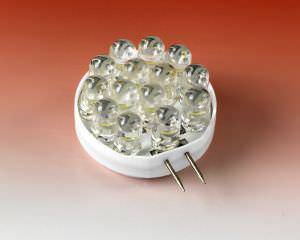

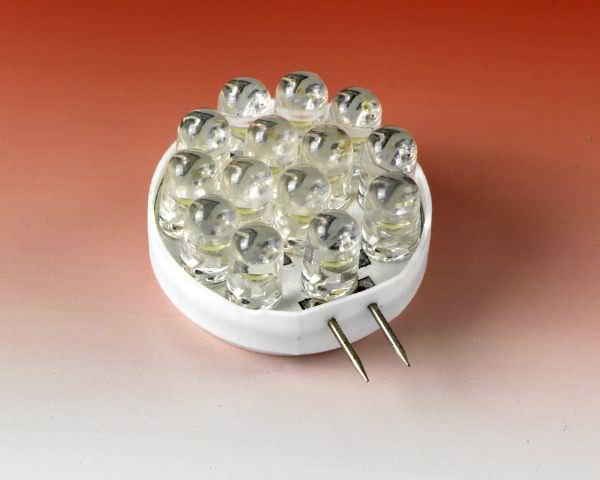

LED REPLACEMENT BULB G4 TYPE 12-14V RED
Description
These replacement LED-Lamps fit directly into existing light fixtures that have the G4 type side entry bulb holder care has to be taken that the holes in the holder are parallel to the reflector. Otherwise the lamp would not fit into the fixture. A remedy would be to exchange the holder with a suitable one.
Operating Voltage: The LED-Lamps are especially designed for the operation from the on board supply system. If line voltage AC is used, magnetic transformers are suitable only, observing minimum load.
Mechanical Properties: The LED-are less sensitive to shock and vibration as halogen lamps are. The ambient temperature may be between 0 and 40°C.
Specification:
Volts : 12-24v
Watt : 0.9
Colour : Red
Angle : 30°
Candle : 70
Diodes : 14
Diameter : 25mm
Diameter with pins : 33mm
