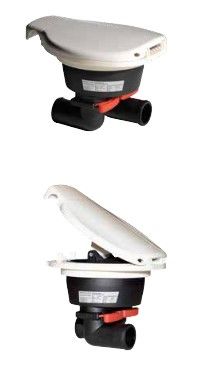

Johnson Pumps Viking Compact Hand Bilge Pump 1" & 1-1/2"

V I K I N G C O M PA C T - M A N UA L H A N D - P O W E R E D B I LG E P U M P
Full-capacity, hand-powered bilge pump perfect for installation in tight spaces. This rugged, yet sleekly
designed, single-chamber diaphragm pump provides first-rate performance and is a snap to install. It can be
fitted in minutes from one side of the bulkhead with just four screws, self-sealing against the surface with
a durable, watertight gasket. With the pump house recessed behind the bulkhead, only the handle is visible
from the cabin or cockpit.
The Viking Compact's inlet and outlet ports can be swiveled 360° and are delivered in two sizes with every
pump, Ø25mm (1") and Ø38mm (1½"). Naturally, the Viking Compact has KlickTite connectors fitted as
standard, literally making hose connections a snap!
Part No.  0-24800-01

Description Viking Compact Manual Bilge Pump

Ø25 mmConnection (1") and Ø38 mm (1½") ports
Body Polypropylene Cover ABS Diaphragm Nitrile rubber Valves Nitrile rubber
(1 leaf and 1 tricuspid valve)
Wetted parts Polypropylene, PA66GF30 plastics
and nitrile rubber
Maximum lift 2.1 meters (7 feet)
Viking Compact - Flow at 10 kPa head and 45 strokes/min
Ø 25 mm connections 34,5 liters/minute (9.1 US gallons/minute)
Ø 38 mm connections 45 liters/minute (11.9 US gallons/minute)
Maximum head 1.2 meters (4 feet)
Combined head/lift 3.3 meters (10.8 feet)
Connections included
KlickTite connectors for 1" (25 mm) or
1½" (38 mm) hose
Max. liquid temp +60°C (140°F)
Weight 0.675 kg (1.5 pounds)
