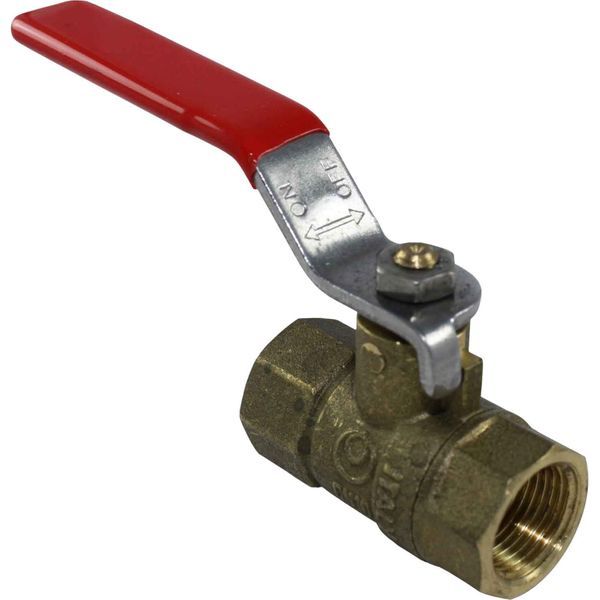

Maestrini DZR CR Ball Valve (1" BSP Female Ports)
Description
Maestrini ball valve constructed from de-zincification resistant CW602N CR brass. This ball valve is suitable for hot or cold water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air and can be used for sea water inlets and outlets. These ball valves are threaded 1" BSP Female each end and have a lever handle on top which requires a 1/4 turn for on/off action. DZR CR ball valves are full bore meaning no restriction to flow when fully opened.
This ball valve features a CW602N DZR CR brass body and ball, as well as a stainless steel lever handle.
It is extremely important to check the material suitability and bonding requirements for below waterline components. Action must be taken to prevent galvanic action.
| Temperature Range | -10°C to +100°C |
| Working Pressure | 362.5 PSI (25 bar) |
| Brand | Maestrini |
| Thread Gender | Female |
| Valve Design | Ball Valve |
| Country of Origin | Italy |
| Construction | DZR Brass Body (CW602N UNI EN 12165/98), Chrome Plated DZR Ball (CW602N UNI EN 12165/98), Stainless Steel 430 Handle & Nut, PTFE Ball Seat, NBR Ball Stem O-Ring & HNBR Handle Stem O-Ring |
| Thread Size | 1" BSP Female (UNI ISO 228/1) |
Specifications
Extras/Additional Info:
Brand Maestrini
Country of Origin Italy
Valve Design Ball Valve
Construction DZR Brass Body (CW602N UNI EN 12165/98), Chrome Plated DZR Ball (CW602N UNI EN 12165/98), Stainless Steel 430 Handle & Nut, PTFE Ball Seat, NBR Ball Stem O-Ring & HNBR Handle Stem O-Ring
Thread Size 1" BSP Female (UNI ISO 228/1)
Thread Gender Female
Temperature Range -10°C to +100°C
Working Pressure 362.5 PSI (25 Bar)
