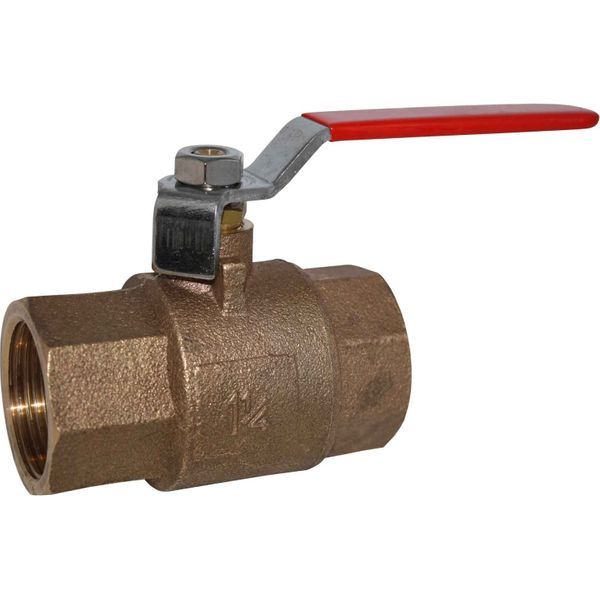

Maestrini Bronze Body Ball Valve (1-1/4" BSP Female)

Maestrini Bronze Body Ball Valve (1-1/4" BSP Female) (click for enlarged image)
Part #:
EC47775
Manf. #:
AS405726

Price:
£94.93


Description

Ball valve body constructed from bronze with a stainless steel handle. This ball valve is suitable for hot water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air. Has a threaded BSP Female port each end as well as a lever handle on top which requires a 1/4 turn. The stainless lever handle comes with a rubber grip cover.

Depending on the application and installation requirements, these bronze body ball valves may not be suitable for below waterline applications.

All fittings used for below the waterline applications must be correctly fitted and bonded so as to minimise the risk of electrolytic action.



Height 104mm (4.1")
Length 99mm, Handle: 122mm
Temperature Range -10°C to +120°C
Brand Maestrini
Thread Gender Female
Valve Design Ball Valve
Country of Origin Italy
Construction Bronze Body (CC491K) with Chrome Plated Brass Ball (CW617), Stainless Steel Handle (AST430) with Non-Slip Grip, Brass Valve Shaft & Packing Body (CW617) & PTFE Ball Sealing Gaskets
Maximum Pressure 500 PSI

Thread Size 1-1/4" BSP Female
