OCEAN ELECTRIC STD COMPACT TOILET WOODEN SEAT 24v
Description
OCEAN ELECTRIC STD COMPACT TOILET WOODEN SEAT
Bowl made from white vitreous porcelain with corrosion resistant parts throughout
Fitted with two part electric seawater inlet and waste macerator pump to rinse and flush in one operation
Supplied with single button panel (9-53090)
Toilet can be mounted above and below the waterline using appropriate vented loop
Self priming water inlet pump operation up to 1.5m vertically
Macerator discharge pump operation up to 3.50m vertically
Specifications:
Water consumption: 1.5 - 5 litres
Voltage: 12/24V
Amp. Draw: 13A - 7A
Outlet connection: 25 mm (1'')
Inlet connection: 19 mm (3⁄4'')

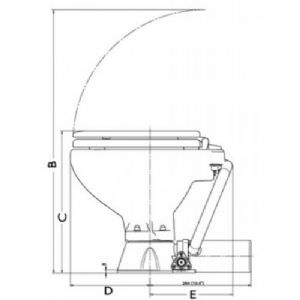

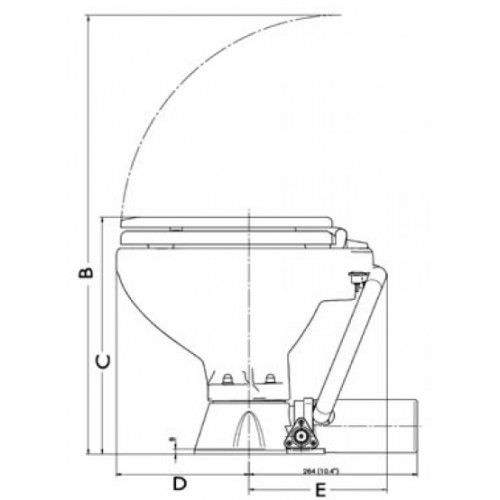

| Part No |
Weight |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
| 9-53006 |
10kg |
345 |
692 |
373 |
209 |
216 |
| 9-53007 |
10kg |
345 |
692 |
373 |
209 |
216 |
Downkload technical spec sheet
