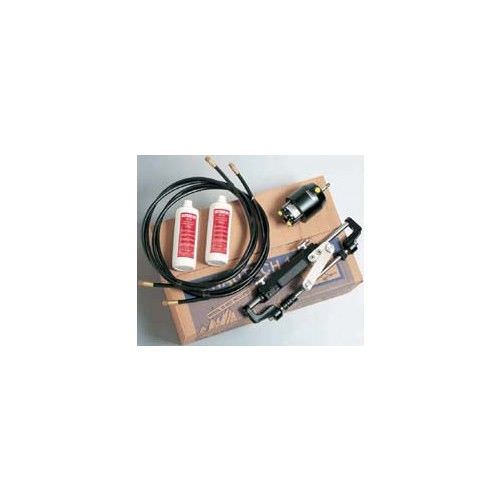

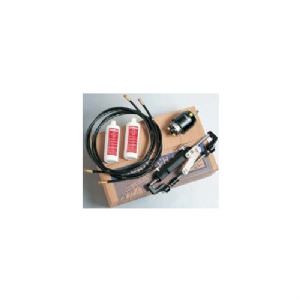

NAUTECH 1 OUTBOARD HYDRAULIC STEERING KIT6.5m hoses
Description
NAUTECH 1 OUTBOARD HYDRAULIC STEERING KIT 6.5m hoses. Suitable for single station, single engine up to 300hp
Wheel Turns = 4.5
Sysyem Consists of:
* 1 x 28cc front mount helm pump (4-48006)
* 1 x front mount outboard cylinder UC128 -OBF/1 (4-48066)
* 2 x liters of hydraulic oil (4-47067)
1x Pair of hydraulic hoses 4.50M long (4-47035)
(Please note that a steering wheel is not included)
Check Cylinder Application Guide for system requirements.
Note: For twin engine applications a tie bar is required. Check Tie Bar Application Guide for requirements.
For hose lengths order 4-48080 and then order a hose kit. (See Outboard Hose Kit Guide)
Cylinder Application Guide
Hose Kit Guide
Specifications
Extras/Additional Info:
Mounting Front Mount
Model UP28F
Displacement 28cc - 1.7cn.in
No of Pistons 5
UP28F FRONT MOUNT HYDRAULIC HELM 28cc
Relief Valve Setting 70 bar - 1000 PSI
Max Wheel Dia 710mm - 28"
Weight kg - lbs 5kg - 11lbs
UC128-OBF/1 OUTBOARD FRONT MOUNT HYD CYLINDER
Depth Dimension (Ctr to Ctr) = 76.2mm (3.00")
Width Dimension (overall) = 544mm (21.43")
HYDRAULIC STEERING 15 GRADE OIL 1 LITRE
Hydraulic Oil ISO VG 15
Viscosity 15cst @ 40°C
Viscosity Index <100
Solidification Point <-30°C
Item Dimension:
1x Pair of hydraulic hoses 4.50M long (4-47035)
