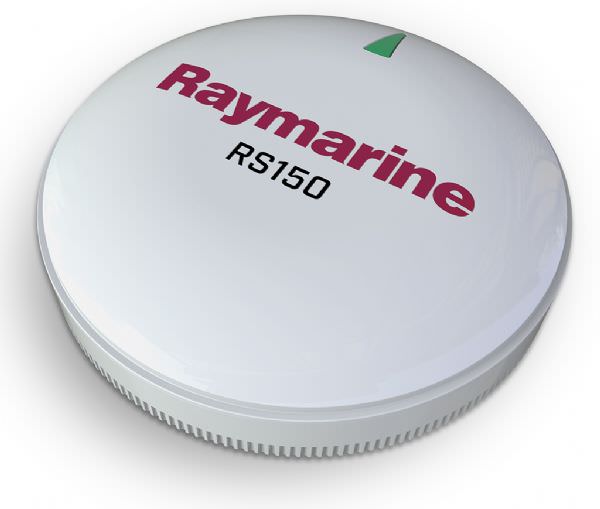

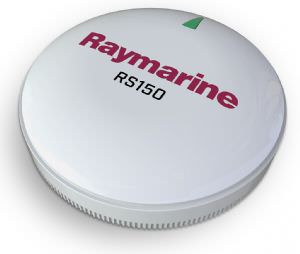

Raymarine RS150 GPS Sensor
Description
RS150 Key Features
72-channel GPS receiver
Fast 10Hz position updates
Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
A GNSS receiver with GLONASS compatibility
Low power consumption: 30mA (1 LEN)
SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
Designed for low profile surface mounting or optional pole mounting
Do you require an external GPS antenna or GPS sensor?
aSeries, cSeries, eSeries and eS Series MFD with integral GPS Typically, you do not require an external GPS because your Multifunction Display incorporates an integrated GPS receiver.
However, there are some circumstances when you may require an external GPS antenna or sensor-for example within a steel wheelhouse where the Multifunction Display will not receive GPS signals.
The optional GA150 remote GPS antenna and the RS150 GPS can be used with the following multifunction displays when an external sensor is required:
aSeries a95 / a97 / a98 / a125 / a127 / a128
eS Series eS97 / eS98 / eS127 / eS128
The following multifunction displays can use the RS150 when an external GPS antenna is required:
aSeries a65 /a67 a67/ a75/ a77 /a78
eS Series eS75 /eS78
All legacy c Series and e Series
gS Series MFD gS Series systems require a Raymarine RS150 GPS external sensor as part of the network.
Legacy E Series Widescreen (E90W, E120W, E140W) The E Series Widescreen displays do not have an integrated GPS and can use the RS150 connected via a SeaTalkngbackbone.
Legacy C Series Classic (C80, C120) E Series Classic (E80, E120) Raymarine Classic Multifunction Displays require a SeaTalk1 to SeaTalkng converter to connect an RS150
Specifications
Extras/Additional Info:
Nominal supply voltage 12V D.C. Powered by N2K bus
Operating voltage range 8 - 32V DC
Power consumption 30 mA max (NMEA LEN = 1)
Operating temperature -13ºF to 131ºF (-25ºC to +55ºC)
Relative humidity max 93%
Waterproof IPx6/7
Supported connection protocols SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
Sensitivity High sensitivity - acquisition down to -163dBm
No. of channels 72
Positioning System GPS & GLONASS
Satellite Differential Type WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
Differential acquisition Automatic
Position accuracy (95%) <15m
Position accuracy with SDGPS (95%) <5m
Speed accuracy (95%) <0.3kt
Time to first fix from cold start <2 minutes (< 45 seconds typical)
Time to first fix from hot start < 8 seconds -72 hour hold up battery allows for hot start
Geodetic Datum WGS84
Mounting Surface/rail/pole
