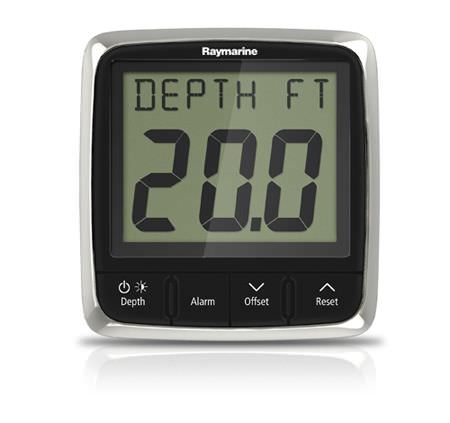

Raymarine i50 Digital Depth Display
Description
Easy-view large digits plus depth trend indicator.
- Min/max depth.
- Audible shallow, anchor and deep water alarms.
The new i50 instruments are designed to complement the all new Raymarine multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and rigid inflatables.
Excellent viewing angles for both day and night conditions and simple, push-button controls make the i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.
|
Key Features
|
Specifications
Extras/Additional Info:
Nominal Voltage 12V DC
Operating Voltage
Range
10 - 16V DC
Power Consumption typically <1W (display only) and 2.4W maximum with transducer connected
Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature range -20ºC to +55ºC
Storage Temperature
-30ºC to +70ºC
Relative Humidity up to 93%
Waterproofing standard
IPX6
Connections 2 x SeaTalkng and transducers
Compatible with marine industry CAN systems
Conformance
Europe 2004/108/EC
