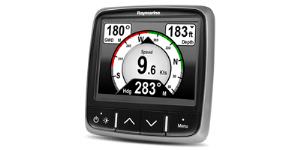

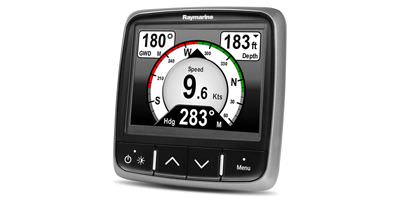

Raymarine i70s Multifunction colour Display
Description
|
The stylish new Raymarine i70 instrument display is packed full of powerful features but remains very easy and slick to use. The large 4" LCD screen is a model of clarity for superb visibility at distance and acute angles. |
|
Key features:
|
Specifications
Extras/Additional Info:
Product Number Raymarine i70 Instrument Display
E22172
Nominal Voltage 12 or 24 V dc
Voltage Range 10.7 to 32 V dc
Power Consumption 1.6 Watts
Mounting method Front Mounted and circular cut
LCD Brightness 700cd/m2
Display TFT LCD 16 bit colour
(64K colours)
320x 240 pixels
Colour palettes Four colour pallettes- two day, inverse and red/black
Operating Temperature -25° to 55 °(-13° F to 131° F)
Storage Temperature -30° to 70° (-22°F to 158 °F)
Relative Humidity and Waterproofing 93% max and IPX6
Connections SeaTalkng (x2)°- compliant with NMEA2000 and SeaTalk specifications
Conformance Europe 2004/108/EC
Australia and New Zealand C-Tick complaince level 2
Languages Extensive Language support: 20 languages available
