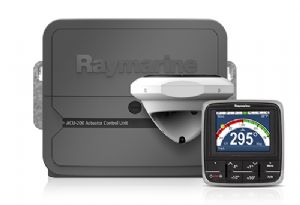

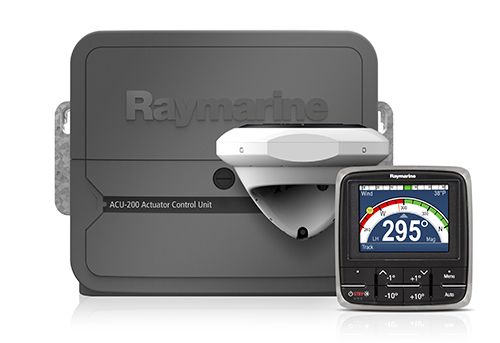

Raymarine Evolution System Pack p70s, ACU400,EV-1 Sensor

Raymarine Evolution Autopilot  system Pack  Suitable for Type 2 & 3 Drives -Race, cruise or fish - Evolution will take command

No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

Key Features

• Automagic^TM - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
• Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line.
• Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
• Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster

• The EV Sensor Core

  At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

  Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standard

• Autopilot Control Unit (ACU)

  The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering type:

  	Supported Drives
  ACU-100	Wheel, tiller and 0.5 ltr Hydraulic
