Raymarine Evolution Autopilot Tiller Drive in P70 Head ACU100 ,EV1 Tiller drive
Description

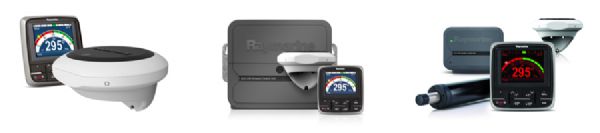

Evoultion Tiller Pilot with P70 Control head ACU100 and Tiller drive
Simple Installation and Setup
The Evolution EV sensor core can be installed almost anywhere on your boat - above or below deck. Install upsidedown or off the vessel's centreline.Once installed, setup is easy, with a simple Dockside Wizard to guide you through the process.
Our users put the Evolution Autopilot to the test
Evolution autopilot systems are installed on vessels around the world from large yachts, to smaller fishing boats and RIBs. Watch our video of Evolution users sharing their experience.
Fuel efficient Evolution autopilots steer so accurately they will save fuel and get you to your destination faster.
Robust Enclosure is fully sealed and built to IPX6 waterproofing standards
3 Response level modes
Tailor the Evolution Autopilot to your liking by selecting either Leisure, Cruising or Performance mode. Simple Installation and SetupThe Evolution EV sensor core can be installed almost anywhere on your boat - above or below deck. Install upsidedown or off the vessel's centreline.
Once installed, setup is easy, with a simple Dockside Wizard to guide you through the process
Specifications
Extras/Additional Info:
Models E70096: EV-1
E70097: EV-2
(designed for the latest drive-by-wire steering systems)
--------------------------------------------------------------------------------
Nominal supply voltage 12 V (powered by SeaTalkng system)
Operating voltage range 10.8 V to 15.6 V dc
Power consumption
(taken from SeaTalkng system)
30 mA
SeaTalkng LEN
(Load Equivalency Number)
1
Sensors 3-axis digital accelerometer
3-axis digital compass
3-axis gyro digital angular rate sensor
Data connections SeaTalkng
NMEA 2000 DeviceNet (EV-2 only)
Installation environmental Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF)
Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF)
Relative humidity: max 93%
Waterprrof rating: IPX 6
Dimensions Diameter: 140 mm (5.5 in)
Depth (including mounting enclosure): 35 mm (1.4 in)
Depth (including wall bracket): 95 mm (3.8 in)
Weight 0.29 kg (0.64 lbs)
